A check engine light can come on for anything from an emissions-system fault to an engine misfire, sensor problem, fuel-control issue, or other engine-management fault. The warning light tells you the vehicle has detected a problem, but the light or trouble code alone does not identify which part should be replaced.
CHECK ENGINE LIGHT GUIDE
Why Is My Check Engine Light On?

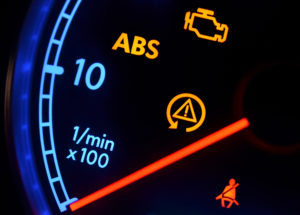

The check engine light, sometimes labeled the malfunction indicator lamp or MIL, turns on when the vehicle’s engine or emissions control system detects a fault that meets the conditions for setting a diagnostic trouble code.
Some faults cause noticeable symptoms such as rough running, hesitation, reduced power, hard starting, or poor fuel economy. Others may turn the light on even though the vehicle appears to drive normally.
The first step is retrieving the stored trouble codes and then testing the system associated with those codes to determine what actually caused the fault.
SOLID VS. FLASHING
Is a flashing check engine light more serious?
How the warning light behaves can provide useful information about how urgently the vehicle should be checked.
Solid check engine light
A solid check engine light means the vehicle has detected a fault and stored diagnostic information.
The vehicle may continue to run normally, or you may notice symptoms such as reduced performance, poor fuel economy, hesitation, difficult starting, or rough operation.
Even when the vehicle seems normal, the fault should be diagnosed rather than ignored indefinitely.
Flashing check engine light
A flashing check engine light commonly indicates a more urgent operating problem, such as an active misfire severe enough to risk overheating or damaging the catalytic converter.
If the light is flashing and the engine is shaking, losing power, or running very poorly, avoid unnecessary driving and have the vehicle diagnosed as soon as practical.
COMMON CAUSES
What can cause a check engine light?
There are hundreds of possible diagnostic trouble codes, but many check engine light concerns fall into a few common system categories.
01
Engine misfire
A misfire happens when one or more cylinders do not produce normal combustion.
Possible causes include ignition components, fuel delivery problems, air leaks, injector faults, compression problems, wiring issues, or other engine-management faults.
02
Air and fuel mixture problems
The engine computer continuously adjusts fuel delivery based on operating conditions and sensor feedback.
Vacuum leaks, intake leaks, fuel-pressure problems, sensor faults, or exhaust leaks can cause the system to operate too lean or too rich.
03
Sensor or circuit faults
Modern vehicles rely on numerous sensors to monitor engine and emissions-system operation.
A fault may involve the sensor itself, but wiring, connectors, power supplies, grounds, or another system can produce the same code.
04
EVAP system problems
The evaporative emissions system is designed to prevent fuel vapors from escaping into the atmosphere.
Leaks, valves, hoses, pressure sensors, wiring problems, or a fuel-cap sealing issue can trigger EVAP-related trouble codes.
05
Catalyst or oxygen-sensor faults
Oxygen sensors provide information the engine computer uses to monitor fuel control and catalytic-converter operation.
A catalyst-efficiency or oxygen-sensor code requires diagnosis because exhaust leaks, mixture problems, misfires, wiring faults, sensor problems, or an actual converter failure can produce related codes.
06
Engine timing or mechanical problems
Some trouble codes can be caused by variable valve timing faults, timing correlation problems, low compression, mechanical wear, or other engine conditions.
These faults often require more testing than simply reading the stored code.
DIAGNOSTIC TROUBLE CODES
What does a check engine light code tell you?
When the engine computer detects a fault, it may store one or more diagnostic trouble codes, commonly called DTCs.
A code helps identify the system or condition that needs investigation. It does not necessarily identify a failed component.
For example, a code describing an oxygen-sensor reading does not automatically mean the oxygen sensor itself is bad. The sensor may simply be reporting a condition caused by another problem.
MORE THAN A CODE SCAN
Why isn’t reading the code enough?
A basic code reader can retrieve diagnostic trouble codes, but retrieving the code is only the beginning of the diagnostic process.
Professional diagnosis may require examining live vehicle data, freeze-frame information, sensor readings, fuel trims, ignition behavior, circuit integrity, mechanical condition, and the circumstances under which the fault occurs.
The testing process depends on the specific code, symptoms, vehicle, and system involved.
COMMON SYMPTOMS
What symptoms can happen with a check engine light?
The warning light may be the only symptom, or it may appear along with noticeable changes in how the vehicle starts, idles, accelerates, or drives.
Rough idle
The engine may shake, stumble, or run unevenly while stopped or idling.
Loss of power
The vehicle may accelerate poorly or feel significantly weaker than normal.
Hesitation
The engine may hesitate, stumble, or respond poorly when the accelerator is pressed.
Hard starting
Some engine-management faults can cause extended cranking, difficult starting, or intermittent starting problems.
Poor fuel economy
Fuel-control or sensor problems can sometimes cause the engine to use more fuel than normal.
No noticeable symptoms
Some emissions or sensor-related faults can turn the light on while the vehicle continues to drive normally.
CAN I KEEP DRIVING?
Is it safe to drive with the check engine light on?
Whether the vehicle should continue to be driven depends on how it is running and what caused the warning light.
A solid light with no noticeable operating symptoms is different from a flashing light accompanied by severe shaking, overheating, loss of power, abnormal noises, or other serious symptoms.
If the engine is running very poorly or another critical warning is present, continuing to drive may create additional problems.
COMMON QUESTIONS
Check engine light questions
Can a loose gas cap cause a check engine light?
On vehicles with a conventional fuel cap, a cap that does not seal properly can contribute to certain evaporative-emissions system faults.
However, an EVAP code does not automatically prove that the cap is the cause. The system can leak or malfunction in several other places.
Will the check engine light turn off by itself?
Some vehicles may turn the light off after the fault is no longer detected for a specified number of operating cycles.
The diagnostic information may remain stored even after the light turns off, depending on the vehicle and fault.
Should I clear the code and see if it comes back?
Clearing codes before diagnosis can erase useful information such as freeze-frame data and fault history.
If possible, diagnostic information should be recorded before codes are cleared.
Does a check engine light always mean an expensive repair?
No. The warning covers many different systems and faults, ranging from relatively straightforward problems to more complex electrical or mechanical issues.
Diagnosis is what determines the actual cause and repair required.
DIAGNOSE BEFORE REPLACING PARTS
How is a check engine light diagnosed?
The diagnostic process begins by identifying the stored codes and the symptoms the vehicle is experiencing.
From there, testing is directed toward the affected system rather than replacing whatever component name appears in the code description.
Depending on the fault, diagnosis may involve scan-tool data, electrical testing, ignition testing, fuel-system evaluation, smoke testing, vacuum testing, or mechanical checks.
MOBILE CHECK ENGINE LIGHT DIAGNOSIS
Check engine light diagnostics in Frisco, TX
Rexroad Mobile Auto Repair provides mobile automotive diagnostics at homes, workplaces, and other suitable locations in Frisco and nearby communities.
If the check engine light is on, the vehicle is running poorly, or you already have diagnostic trouble codes and need help determining the actual cause, the next step is proper testing.
Code retrieval
Stored and pending diagnostic trouble codes can be retrieved as the starting point for diagnosis.
Live-data analysis
Relevant sensor and operating data can be reviewed to help determine what the vehicle is doing while the fault is occurring.
Electrical testing
Power, ground, wiring, connectors, and circuit behavior can be tested when an electrical fault is suspected.
Misfire diagnosis
Ignition, fuel, air, electrical, and mechanical causes may need to be evaluated when misfire codes are present.
Air and fuel diagnosis
Fuel-trim and mixture faults may require testing for intake leaks, fuel delivery, sensor input, exhaust leaks, or other causes.
System-specific testing
The exact testing procedure is based on the vehicle, stored codes, symptoms, and system involved.
